In the Model Context Protocol (MCP), tool and resource responses are intentionally structured to separate machine reasoning, user presentation, and implementation details.

Below is a breakdown of the three primary response fields.

1. structuredContent

Purpose: Machine-readable payload for the model and orchestration layers.

What it is

• A JSON object
• Must conform to the declared outputSchema (if defined)
• Designed for deterministic reasoning and tool chaining

Who uses it

• The LLM
• The MCP Client

Key properties

• Strongly typed
• Predictable structure
• Not optimized for display
• Contains authoritative result data

Example

{
  "structuredContent": {
    "orderId": "A1234",
    "status": "shipped",
    "trackingNumber": "1Z999AA10123456784"
  }
}

This is what the model uses to reason, branch logic, or pass into another tool.

2. content

Purpose: Human-readable output for conversational display.

What it is

• An array of content blocks
• Intended for chat/UI rendering
• Optional but recommended for user-facing tools

Who uses it

• The LLM
• The MCP Client
• The end user in the UI

Key properties

• Optimized for readability
• May summarize or explain structured results
• Can contain markdown or formatted text
• Does not need to strictly match schema

Example

{
  "content": [
    {
      "type": "text",
      "text": "Your order A1234 has shipped. Tracking number: 1Z999AA10123456784."
    }
  ]
}

This is what the user sees in the interface.

3. _meta

Purpose: Out-of-band metadata not exposed to the model.

What it is

• Arbitrary JSON object
• Not part of conversational content
• Invisible to the LLM

Who uses it

• The MCP Client

Key properties

• Hidden from the model
• Can contain raw internal objects
• Often used for UI hydration
• Can avoid duplicating large datasets in structuredContent

Example

{
  "_meta": {
    "internalOrderObject": {
      "dbId": 987654,
      "warehouseId": "WH-02",
      "rawCarrierPayload": { ... }
    },
    "renderHint": "showTrackingWidget"
  }
}

The model never sees this data. It is strictly for application-layer use.

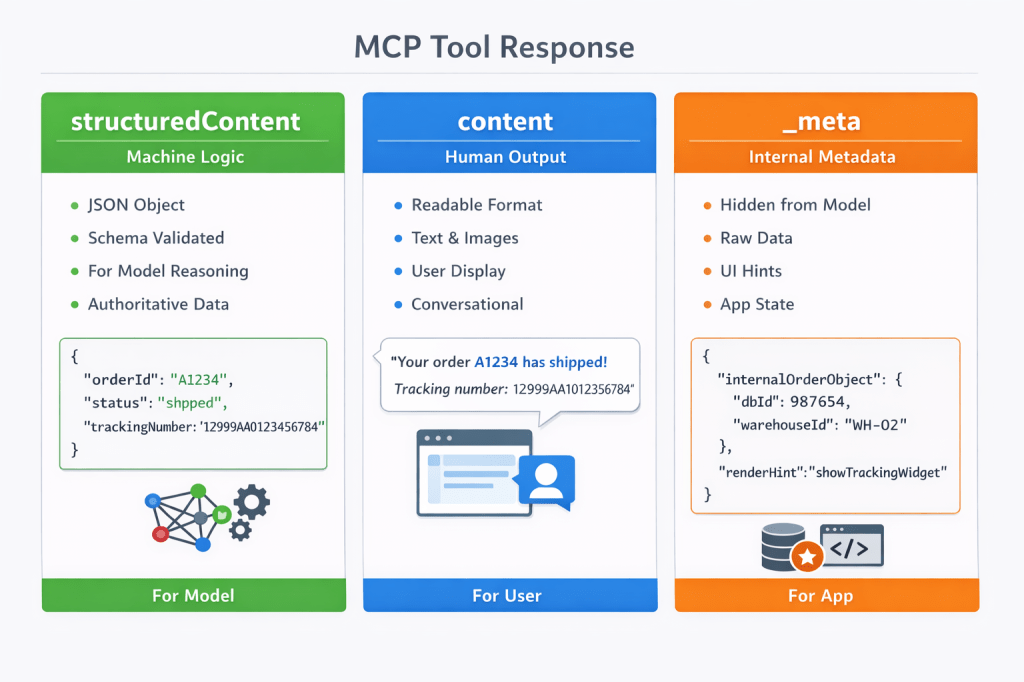

How They Work Together

A complete MCP tool response may include all three:

{
  "structuredContent": {
    "orderId": "A1234",
    "status": "shipped",
    "trackingNumber": "1Z999AA10123456784"
  },
  "content": [
    {
      "type": "text",
      "text": "Your order A1234 has shipped and is on the way."
    }
  ],
  "_meta": {
    "warehouseLocation": "Nevada",
    "uiComponent": "tracking_card"
  }
}

Conceptual Separation

When to Use Each

Use structuredContent when:

• The result must drive tool chaining
• Deterministic schema validation is required
• Output is operational rather than explanatory

Use content when:

• The result must be readable in chat
• You want to provide explanation or narrative context

Use _meta when:

• The client needs raw backing data
• UI hints or rendering instructions are required
• Sensitive internal state must not be exposed to the model
• Large datasets are needed for rendering but not reasoning

Common Design Pattern

A clean implementation strategy:

• Put canonical data in structuredContent
• Put explanation or summary in content
• Put heavy, internal, or UI-only data in _meta

Avoid:

• Placing raw backend payloads directly into structuredContent
• Exposing sensitive data the model does not need
• Using _meta for data required for model reasoning

Bottom Line

• structuredContent = structured truth for machines
• content = conversational output for humans
• _meta = private implementation details for the host

Designing with clear separation between reasoning data, presentation data, and implementation data results in clean, scalable MCP tool interfaces.
